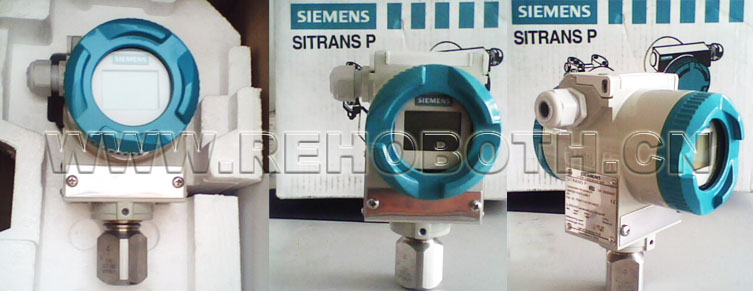

7MF4033压力变送器

Products

一、概述

     SITRANS 7MF4033 压力变送器能测量液体和气体的压力，并输出对应的4-20mA模拟信号和数字信号。可通过控制键，HART 通讯， PROFIBUSPA 或基金会现场总路接口进行参数设定。
     测量变量：腐蚀性和非腐蚀性气体、蒸汽和液体的表压压力。
     · 量程(连续可调) DS III HART 系列： 0.01 ... 400 bar g
     · DS III PA 系列7MF4034 (PROFIBUS PA)：  1 ... 400 bar g
     · DS III FF 系列7MF4035 (基金会现场总线)： 1 ... 400 bar g

SITRANS P DS III

常用型号：
7MF4033-1BA10-1AC6
7MF4033-1CA10-1AC6
7MF4033-1DA10-1AC6
7MF4033-1EA10-1AC6
7MF4033-1FA10-1AC6
7MF4033-1GA10-1AC6

The SITRANS P DS III series includes digital pressure transmitters for measuring gauge pressure, absolute pressure, differential pressure, flow and level. Even the standard devices offer comprehensive diagnostics and simulation functions with high reliability. The suitability for use in SIL2 circuits has been certified by external test institutes. With Profibus transmitters, the new PROFISAFE technology guarantees uniform safety from the control system down to the transmitter.

Detail：	Accuracy	≤ 0.075 %
	Long-Term Stability	≤ 0.25 % / 60 months
	Measuring range	0 - 10 mbar (0 - 0.4 inchH₂O) to 0 - 400 bar (0 - 5800 psi)

二、选型

SITRANS 7MF4033压力变送器
